The
by XPro Ltd
Argos is an Universal
Protocol Analyzer software for telecommunication protocols, running on Windows
platforms.
It uses a proprietary XML
protocol definition language to define the supported protocols and the user
interface layouts.
The software provides a set of input interfaces for
real time and offline protocol analysis: log files (text or binary), serial COM
ports, TCP/IP ports, SSH and Telnet sessions, clipboard, and user implemented
input devices supported by an API, for proprietary hardware.
It offers multiple views of the analyzed protocol data
and various post processig features like, PDU reassembling of fragmented
messages, view and PDU filtering, reporting, message diagrams, exporting to
text (plain, RTF or HTML) or binary (user defined) formats.
|

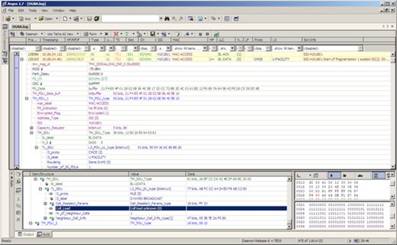

Tetra Air
Interface PDU view
|
Tetra Air
Interface PDU expanded
|
The following open protocols are supported by the
current version of Argos:
Tetra Protocols
Tetra Air
Interface, ETSI
300 392-2 Voice + Data, v3.5.1 (2011-10) and a set of referenced
standards, inluding TEDS
Tetra ISI (Inter
System Interface) ETSI
300 392-3-1
5 Individual Call (IC), Group Call (GC), Mobility
Management (MM), Short Data (SD)
Tetra
Supplementary Services (SS) ETSI
300 392-9, 300
392-12-3
24, Dynamic Group Number Assignment (DGNA), Talking Party
Identification (TPI), Call Waiting (CW), Ambience Listening (AL), and soo on
ISDN Protocols
LAPD Q.921
QSIG (DSS1/PSS1)
ISO/IEC
11572, ISO/IEC
11582, Q.931 and Q.932
ROSE ITU X.229
IP and Ethernet
protocols
Ethernet
IPv4, TCP, UDP,
SCTP,ICMP,IGMP
More screenshots bellow:
|

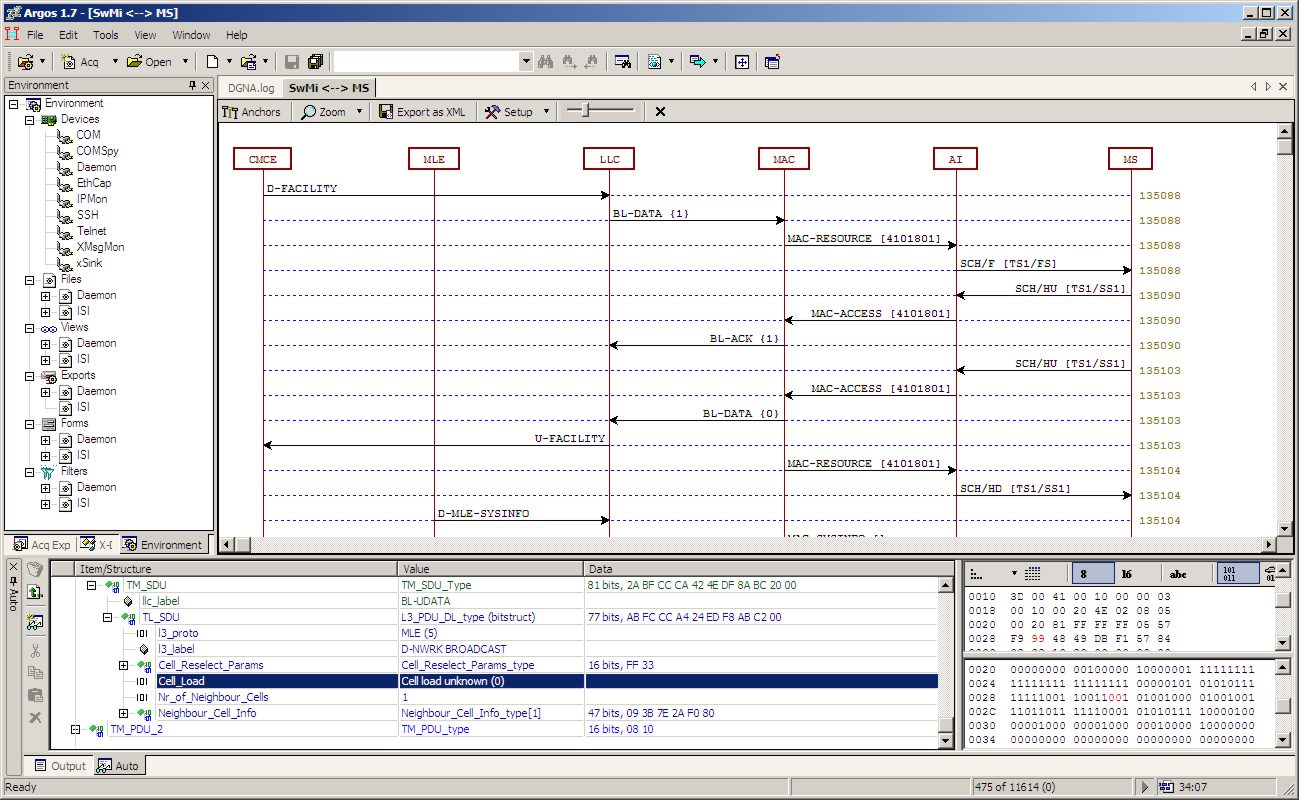

Tetra Air
Interface message diagram
|

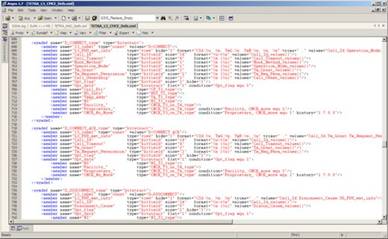

Tetra Air
Interface XML definitions
|
|

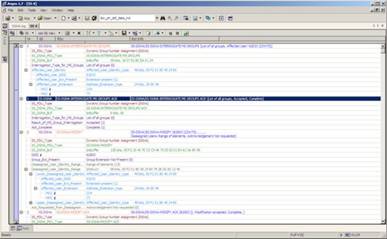

Tetra SS/DGNA
PDU analysis
|

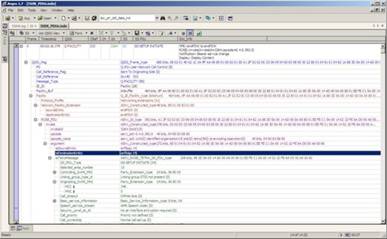

Tetra ISI PDU
analysis
|
|

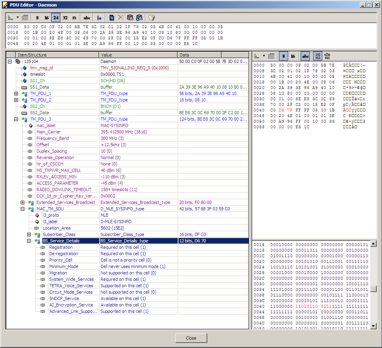

PDU Edit dialog
|
Acquisition
Configuration dialog
|
Visit also the PDU Generators
for some of the above listed protocols.
